Mastercam for Solidworks Command Manager Is Missing Tools

Mastercam for Solidworks Command Manager Is Missing Tools

If your Mastercam for Solidworks' tab in Solidworks is missing, or has the wrong toolpaths under the wrong tabs, refreshing the user interface in the Solidworks Windows Registries will reset the tabs in Solidworks.

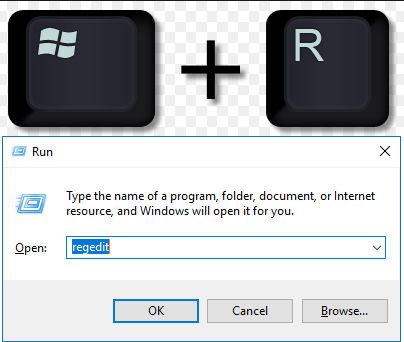

To fix this, first shut downs "Solidworks", then press the "Windows Key" + "R" and then type in "regedit" in the "Run" dialog box.



With the "Registry Editor" open, go under "HKEY_CURRENT_USER", down to "SOFTWARE" look for "SolidWorks", and if there are multiple versions on your computer,go to the version you're using, and expand that folder, towards the bottom you'll find "User Interface", delete that folder.



The next time you open "Solidworks" it will regenerate a new "User Interface" folder, and your "Command Manager" should be like a fresh install.
