Refresh the Windows Configuration for Mastercam

Refresh the Windows Configuration for Mastercam

Warning, You will need admin rights on your computer, and if you delete the registry from the "HKEY_LOCAL_MACHINE", you'll need to do a repair install for Mastercam, or possibly do a complete uninstall and reinstall.

First Make sure Mastercam is shut down, then press the Windows Key and R on the keyboard to open up the Run Utility, and type "regedit"

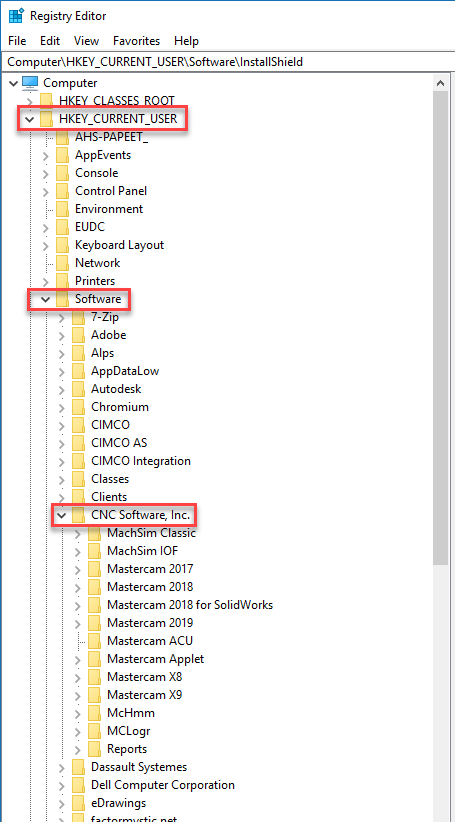

When the Windows Registry Editor is open, go to "HKEY_CURRENT_USER" to "Software", and down to "CNC Software, Inc. and look for the version of Mastercam you need to refresh.

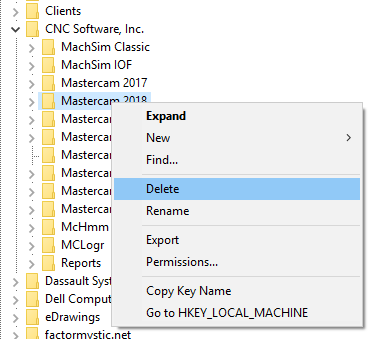

Highlight the Mastercam Windows registry you need to refresh and delete the registry.



Then close the Windows Registry Editor, and the next time Mastercam is restarted, it will regenerate this registry.
