Importing Toolpaths from another Mastercam Part File.

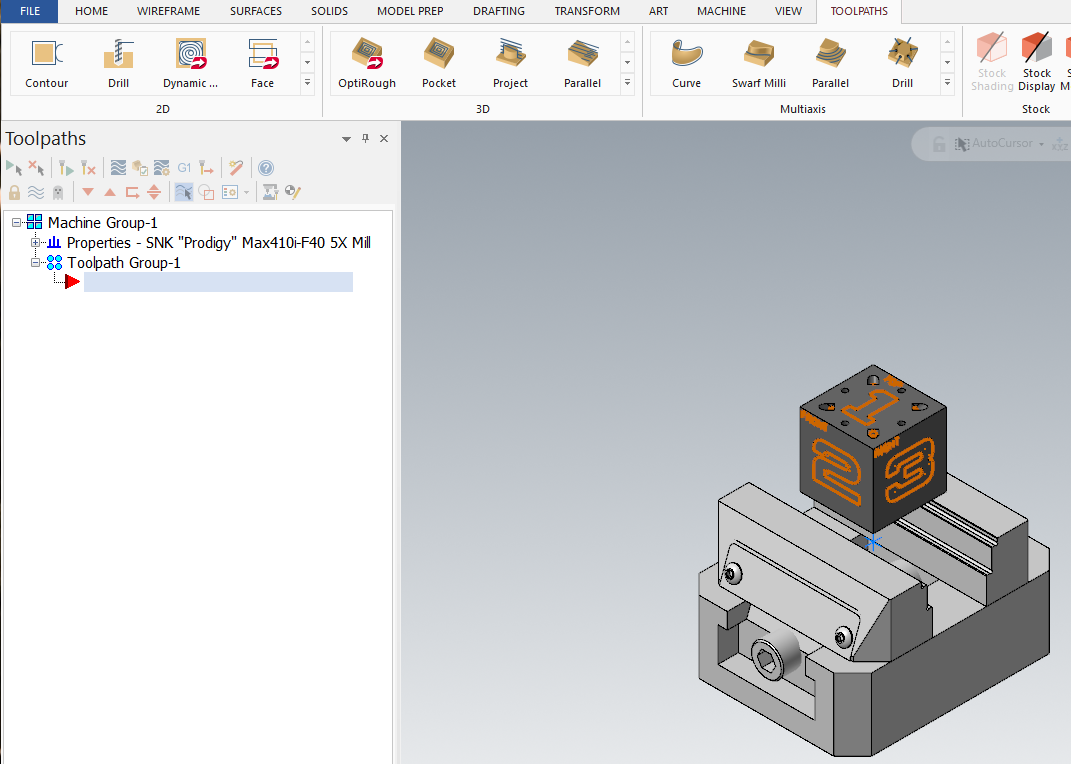

To import toolpaths from another Mastercam part file, you need to have a Machine Group loaded first.

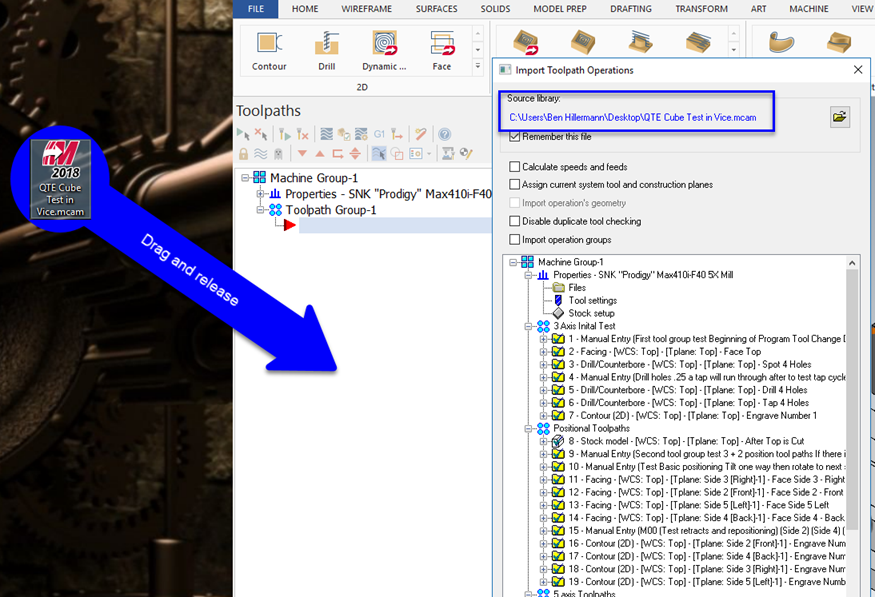

Drag and release the Mastercam part file with the toolpaths to import onto the Toolpath Manager.

Select the toolpaths you want to import in the Import Toolpath  Operations window, and the operations will be loaded into the new Mastercam file, all that's needed is Geometry and any other updates to the toolpaths for the new part.
